Maintain the highest standards of hygiene and safety with our comprehensive range of cleanroom and food grade products.
Our supplies advanced lighting solutions, stainless steel enclosures, and control panels designed specifically for cleanroom and food-grade environments. Our products ensure optimal performance, compliance with stringent regulations, and long-lasting reliability.
Cleanroom Lighting Solutions
In cleanrooms, precision is paramount. Even the smallest error can have significant consequences, making it essential to have lighting that ensures flawless visibility. Our cleanroom lighting solutions from Wipro Lighting are engineered to meet the exact requirements of controlled environments, providing:
Flagship Products

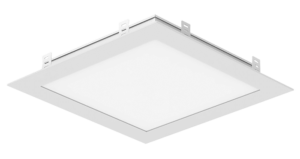

Cleanroom Vision LED Prime TOCR LC30
Best-in-class top opening cleanroom luminaire
Best Suited for
- Luminaire consists of CRCA bottom frame, Housing cover, control gear compartment duly epoxy polyester white powder coated
- Satin finish high efficiency translucence (HET) diffuser is sealed with bottom frame using
- XLPE gasket and specially designed pressure plates ensures positive locking
- Mounting system using specially designed knob with thrust pad
- Electronic LED driver mounted on removable gear tray and pre-wired upto terminal block
- High efficacy LEDs
- IP65 from front after installation
- Designed for installation in RCC slab/ metallic walkable sandwich panel ceiling with through & through cut.
- Top Frame with Top cover will be offered as accessories.
| Cat. No.* | Luminaire Lumen OP (Lm) | Luminaire Wattage (W) | Rated Voltage (V) | Mains Current (A) | |
|---|---|---|---|---|---|
| LC30-411-XXX-57-G1 | 2750 | 30 | 240 | 0.13 | |
| LC30-551-XXX-57-G1 | 4087 | 42 | 240 | 0.18 | |
| LC30-721-XXX-57-G1 | 5380 | 60 | 240 | 0.26 | |
| LC30-102-XXX-57-G1 | 7253 | 78 | 240 | 0.34 |
*Other colour temperatures available on request
LED is an ever improving and evolving technology. Wipro is committed to bring you the best in LED technology. Data given is representative and can change

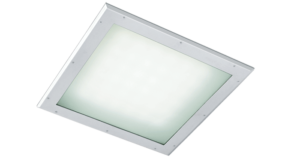

Cleanroom Vision LED LC20
Recess mounted, bottom opening cleanroom LED luminaire. Futuristic smart & connected lighting solution compatible with Power over Ethernet (PoE) technology.
Best Suited for
- CRCA powder coated housing, bottom frame and reflector
- Surface finish in epoxy polyester powder coating lends higher corrosion resistance & life long finish
- Option of Satin finish High Efficiency Translucence (HET) diffuser/clear acrylic diffuser sealed with bottom frame using non-hygroscopic VHB gasket to ensure dust proofing
- Bottom frame fixed to the housing with captive (loss proof) screws
- Wishbone mechanism for perfect bottom frame alignment and hinging
- Excellent heat dissipation through special design of high thermal conductivity Metal Clad PCB & housing
- High lumen output white LEDs (efficacy of 100 lumens/watt)
- 3 Stage isolated Constant Current Constant Voltage driver (CCCV) with operating voltage range of 150- 270VAC
- Driver pre-wired upto terminal block
- Suitable for class 10,000 & 100,000 cleanroom applications
- Conforms to IS10322/Part 5/Sec.1:1987
- Product compatible with PoE system / Smart Engine
- Loop-in, loop-out facility to save cost of cables and switches
- Suitable for 19 mm ET cable entry
| Cat. No.* | Luminaire Lumen OP (Lm) | Nominal System Wattage (W) | Rated Voltage (V) | Mains Current (A) | Case Lot (in nos) |
|---|---|---|---|---|---|
| LC20-411-XXX-57-XX | 2860 | 30 | 240 | 0.13 | 02 |
| LC20-551-XXX-57-XX | 4087 | 42 | 240 | 0.18 | 02 |
| LC20-721-XXX-57-XX | 5380 | 60 | 240 | 0.26 | 02 |
| Cat. No.* | System Wattage (W) ± 2W | Rated Voltage (V) | Mains Current (A) | Case Lot (in no’s) |
|---|---|---|---|---|
| LC20-511-XXX-40-RW | 36 | 240 | 0.16 | 02 |
| LC20-511-XXX-57-RW | 36 | 240 | 0.16 | 02 |
*Specific variant compatible with Power over Ethernet (PoE) Technology.

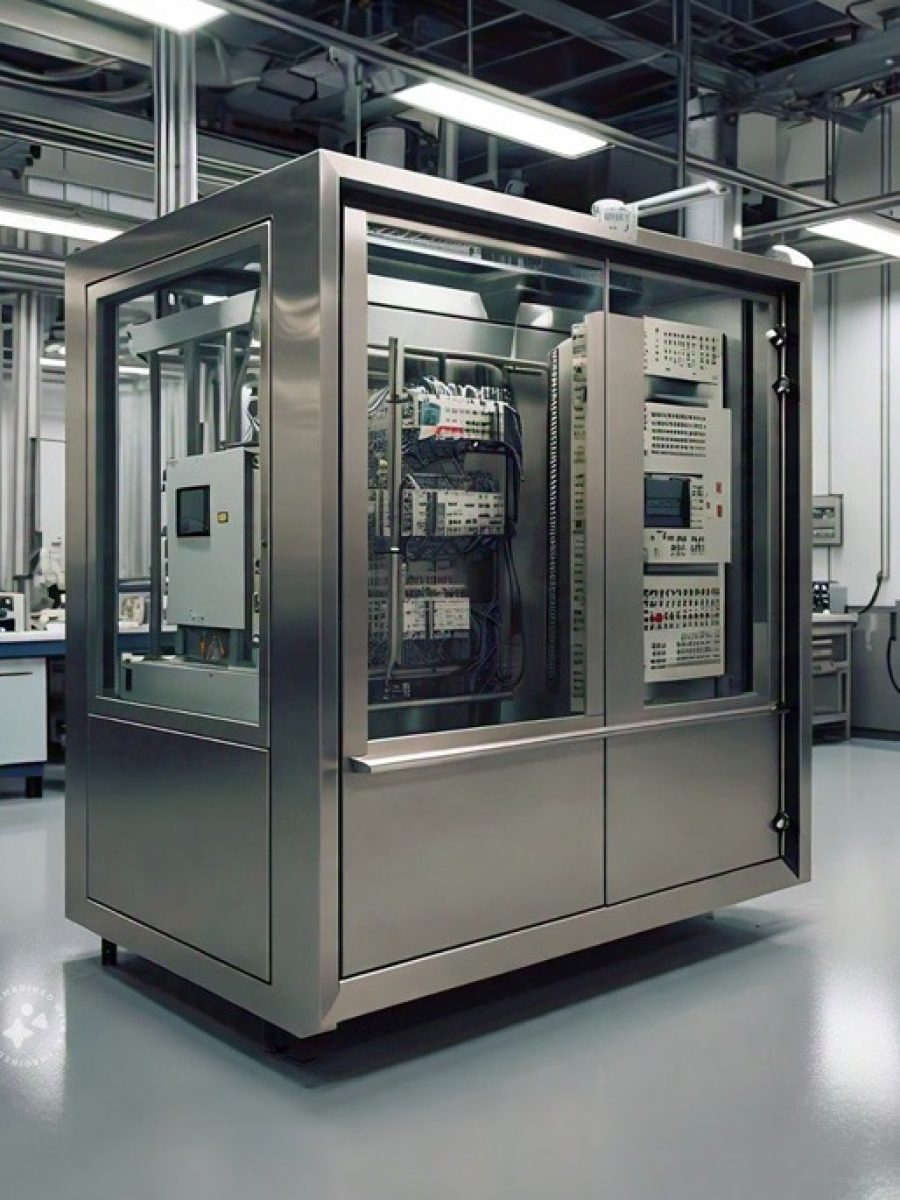

Food Grade Stainless Steel Enclosures and Control Panels
Our food grade stainless steel enclosures and control panels are ideal for applications requiring the highest levels of cleanliness and durability, offering:
