We specialize in high quality switchgear and control panels designed to meet the stringent requirements of various industries.
Our comprehensive range of products includes low voltage and medium voltage panels, each engineered to ensure safety, reliability, and efficiency.
We adhere to international standards such as:

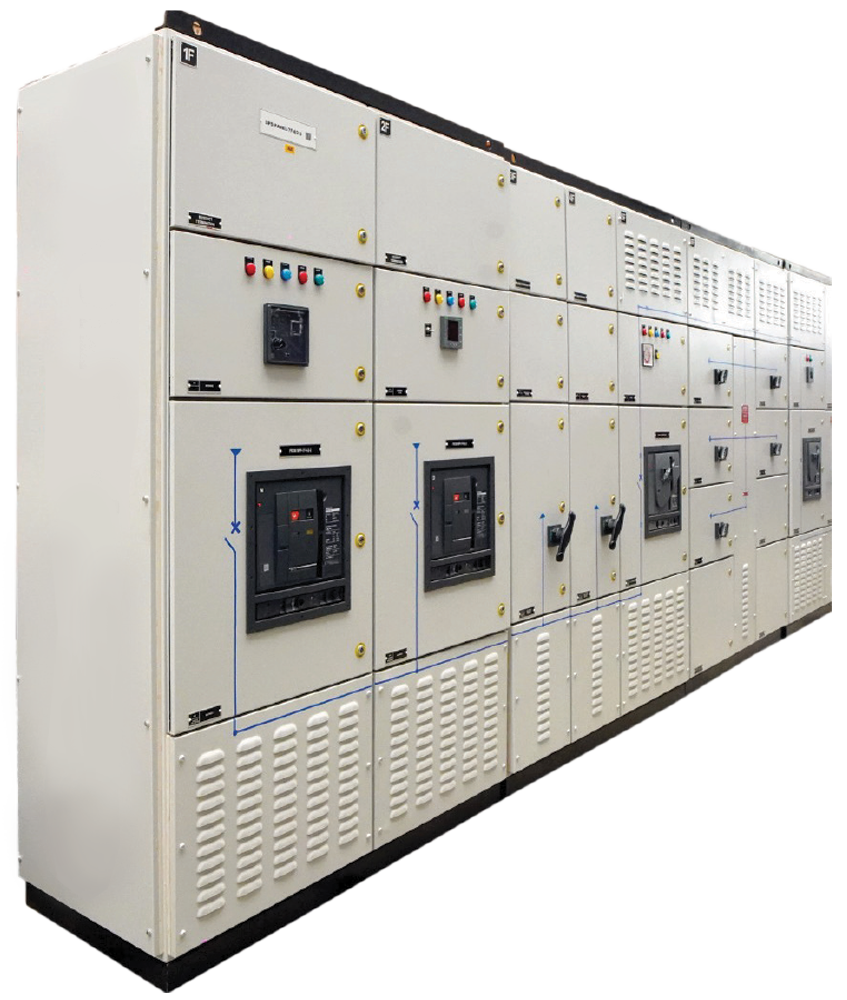

IEC 61439 Certified LV Panel
ASTA Certified IEC 61439 Compliant Low Voltage Switchboards Range.
Technical Specifications
| IEC 61439 Certified | Product that aligns with global benchmarks. |
| High Current Rating | 4000A , 5000A , 6000A upto 6300A. |
| Short Circuit Resilience | 65 kA , 80 kA and 100 kA. |
| Internal Arc Protection | Designed to meet IEC 61641, it can handle 65 kA for 0.5 seconds ensuring optimal safety. |
| Forms of Design | 2B, 3B, And 4B. |
| Degree of Protection | IP 31, IP 42, IP 54, IP 55 , and IP 65 . |

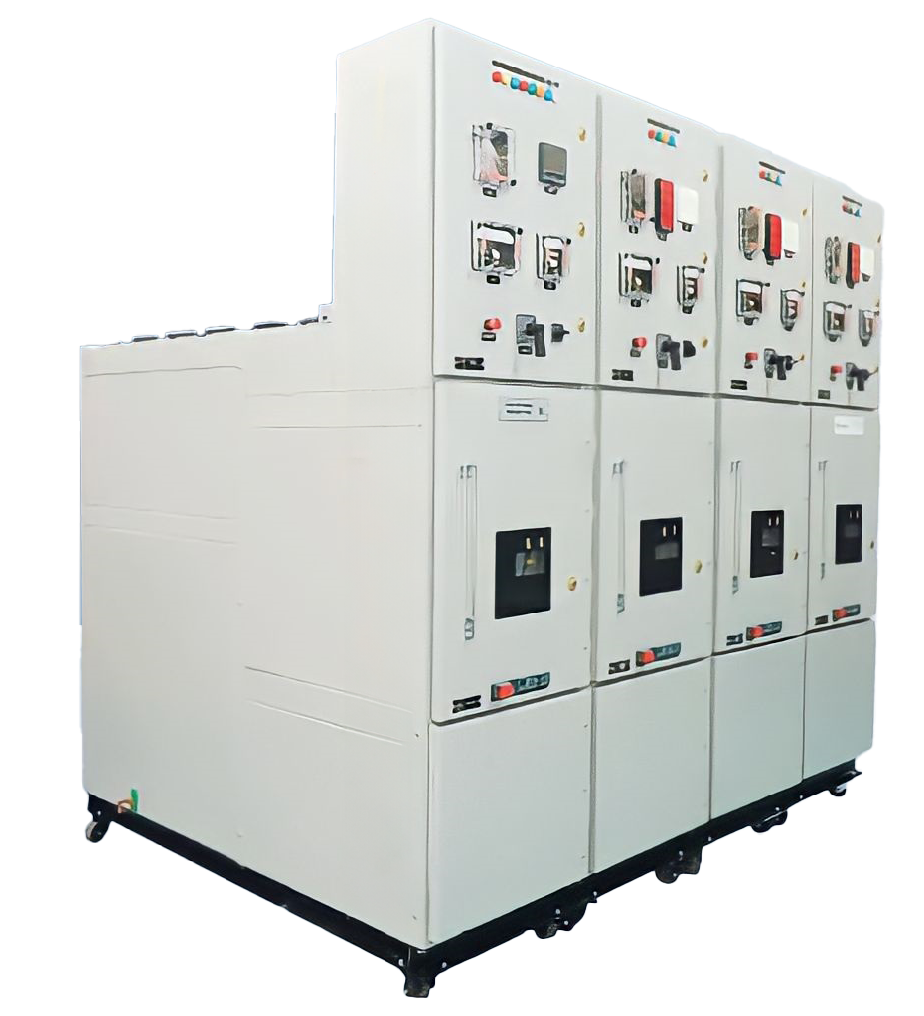

IEC 62271 Certified MV Panel
IEC 62271 Compliant Medium Voltage Switchboards Range.
Technical Specifications
| IEC 62271 Certified | A testament to its quality, safety, and reliability. |
| Voltage and Current Ratings | 11 kV, 22 kV, and 33 kV, and a current rating of up to 2000 A. |
| Short Circuit Resilience | 26.3 kA for 3 seconds. |
| Internal Arc Protection | Offers safety against internal arcs as per IEC 62271, capable of handling up to 25 kA for 1 second. |
| Degree of Protection | IP 42 and IP 55. |
| Extendable Design | Easily extendable on both sides. |
| Integral Earth Switch/Earthing Truck | Provides added safety measures against unexpected electrical faults. |
| Communication Flexibility | Equipped with the capability to communicate using all major protocols. |

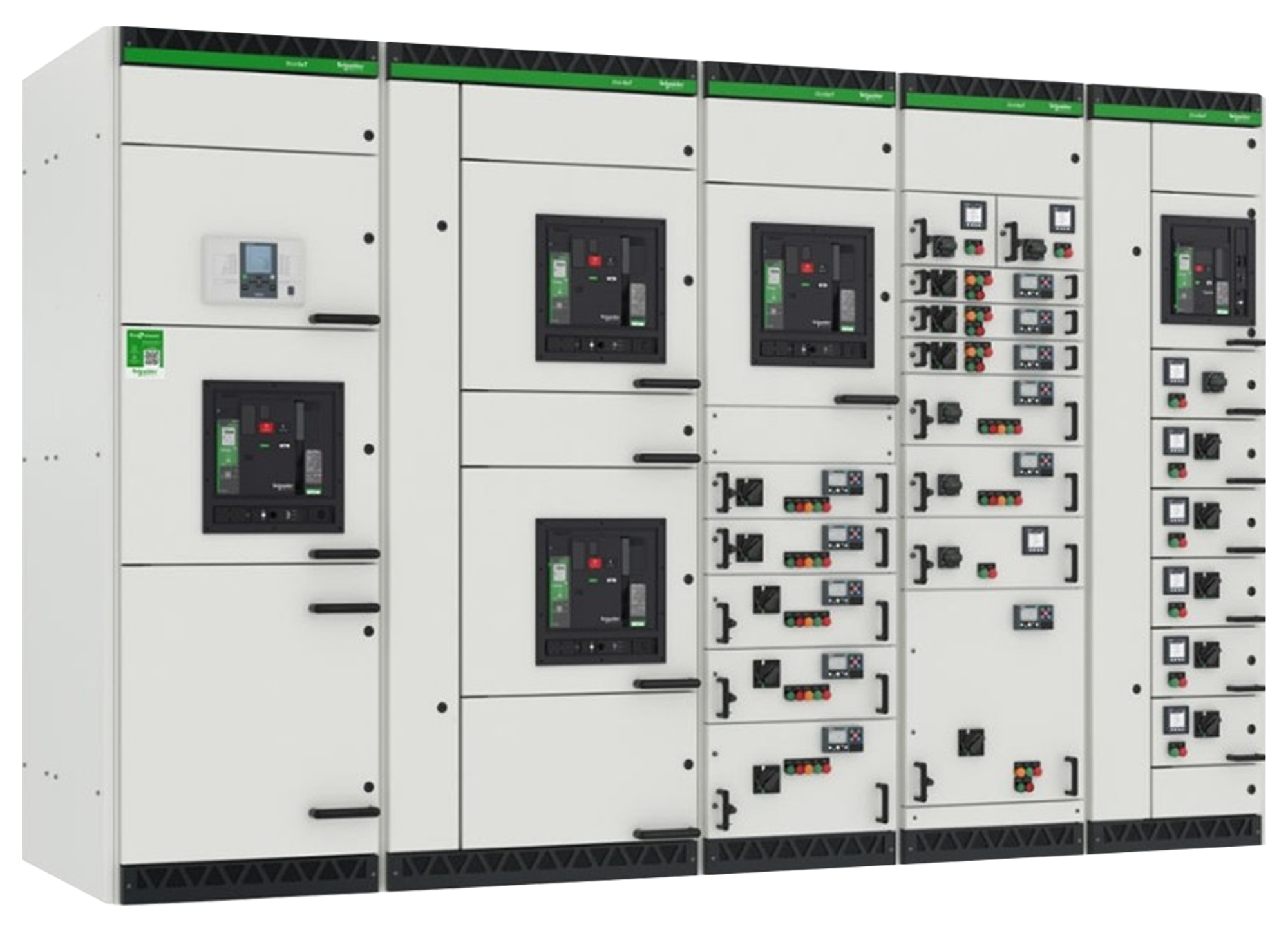

Schneider BlokSeT
Low voltage switchboard for power distribution and motor control up to 7000 A
Technical Specifications
| Certified & Complied | A solution complied and certified as per IEC 61439-1&2 and international LV standard. |
| Internal Arc Protection | Recognized LV panel for internal arc performance |
| Sustainable Design | Green Premium product |

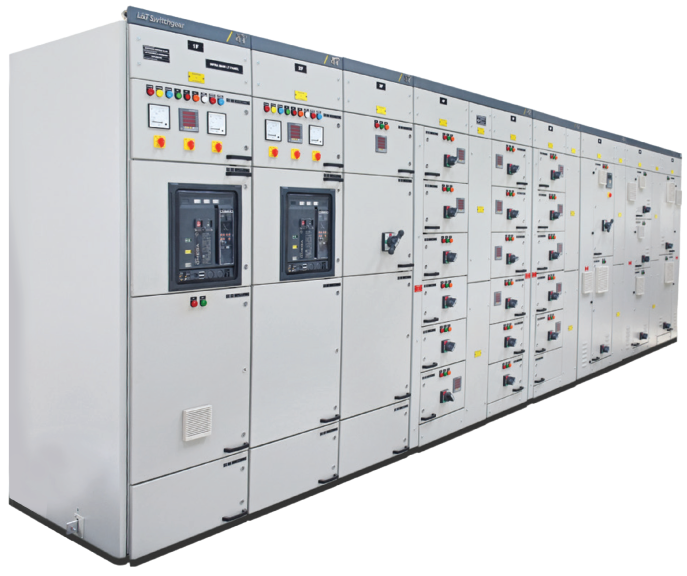

L&T Ti
Intelligent MCC for Smart Factories Designed up to 5000 A
Technical Specifications
| IEC61439 standard up to | IP54 |
| Designed up to | 5000 A |
| Ingress protection | IP54 and IP2X |
| Internal Arc | 70kA for 500msec |
| Stringent fault withstand capacity up to | 80 kA for 1s |

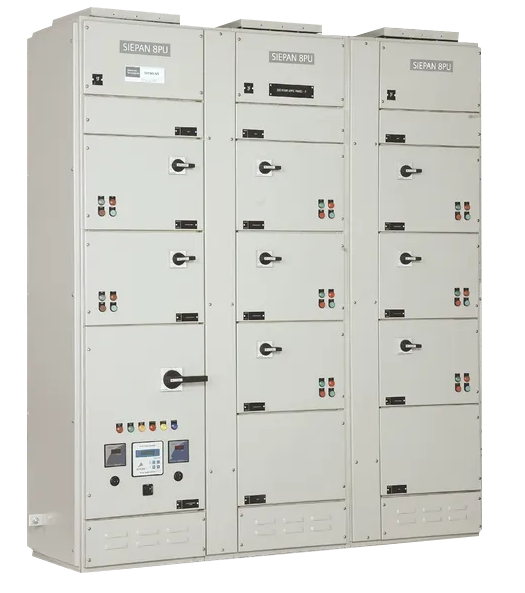

SIEPAN 8PU
SIEPAN 8PU Low Voltage Switchboards Technology by Siemens Licensed Partner built PCC, IMCC, Draw-out MCCs, APFC solutions
Technical Specifications
| Conformance to standards | IS8623-1 / IEC 439 |
| Internal Arc Containment | IEC 61641 |
| Seismic withstand | IS 1893 |
| Short circuit withstand (Icw) – main bus | 65kA / 1sec / 143kA peak |
| Short circuit withstand (Icw) – neutral | 39kA / 1sec / 82kA peak |
| Short circuit withstand (Icw) – earth | 39kA / 1sec / 82kA peak |
| Degree of protection (IP) | IP 4X, 5X, X3, X4 |
| Ambient temperature | 40º C / 45º C / 50º C |
| Temperature rise | As per IEC 61439 -2 |
| Seismic conformance test | Zone III & V |
| Rated insulation voltage | upto 1000V |
| Rated operational voltage | upto 690V |
| Rated impulse withstand | 8kV |
| Main busbar rating | upto 5000A |
| Busbar execution | Interleaved / non-Interleaved |
| Busbar options | Copper / aluminium |
| lnfeed termination | Cable / bus ways / busduct |
| lnfeed entry | Top / bottom |
| Cable feeder access | Front / rear* |
| ACB cubicle | Single tier |
| Form of seperation | upto form 4B |
| Standard height | 2300mm |
| Standard depth | 1120mm / 560mm |
| Standard colour shade | RAL 7035 |

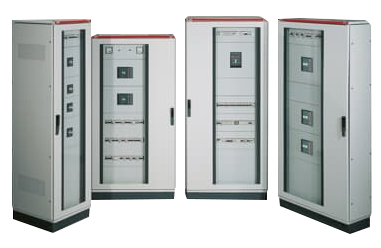

ArTu K
Fully checked and certifi ed (IEC 60439-1 and IEC 61439-1 and 2 Standard) by an external independent organisation (Acae Lovag), the ArTu switchgear is a synonym of safety and quality.
Technical Specifications
| Suitable For | ArTu M Monobloc Structures Artu K Modular Structures |
| Suitable for Product Class | Main Distribution Board Cabinet |
| Model Number | Special profile |
| Shape | None |
| Surface Finishing | Untreated |
| Material | Aluminium |
